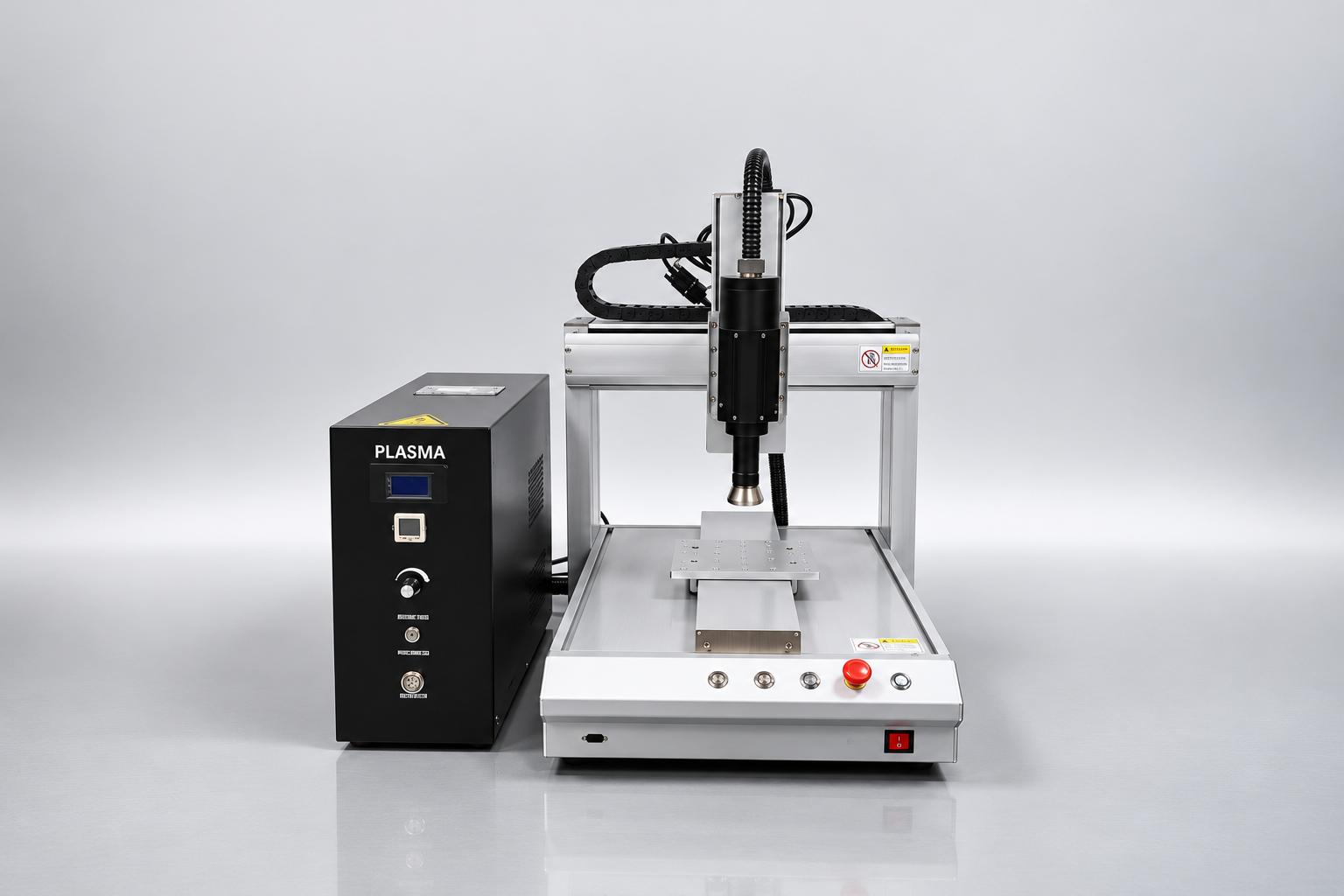

FHD-ZP1200
Desktop plasma treatment solution
By integrating the ions with the desktop platform, the ions are concentrated and controllable, enabling selective processing of specific local areas while minimizing the impact on non-target areas. The operation is simple and the programming is straightforward.
Discuss your application ↗Need to match this system to your production line? Our team can help you review the application.
| Category | Specification |
|---|---|
| Power range | 800W~1200W(adjustable power) |
| Nozzle size | Standard 50mm (20mm to 80mm optional) |
| With spray gun | Direct spray gun (spray gun nozzle: standard 3-meterhose) |
| Processing temperature | 40°C ~ 80°C (temperature varies depending on power) |
| Input voltage | AC 220 (±10%) V, 50–60 Hz (grounding required) |
| Pressure range | 0.2mpa ~ 0.35mpa |
| Air source requirements | Gas is clean, free of water and oil. |
| Host dimensions | 205 (Width)*400 (depth)*409 (height)mm |
| Product weight | 15 ± 0.5kg |
Tell us what you’re working on.
Share your material, treatment width and line speed. We’ll help you take the next step.
