FHD-XP1200

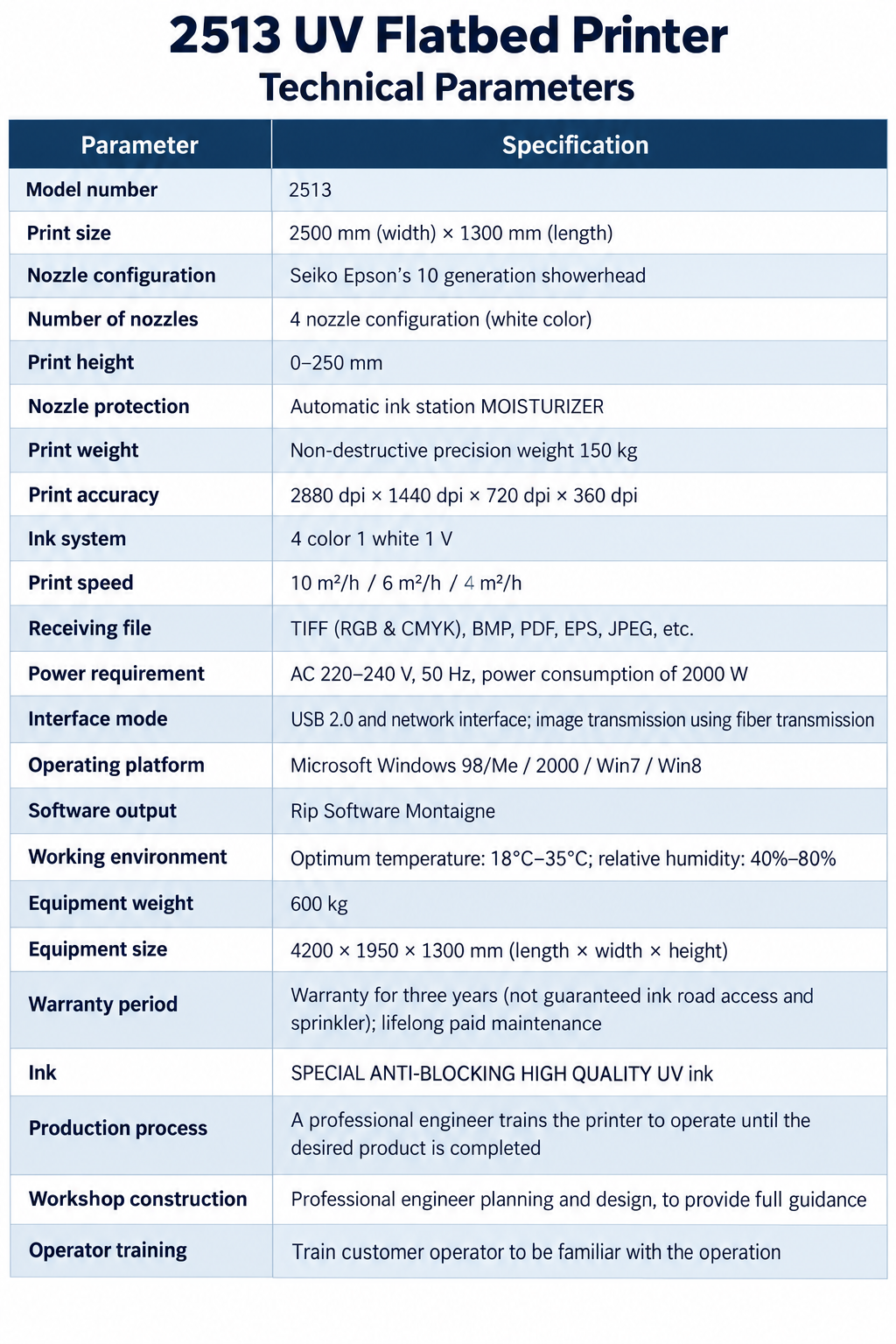

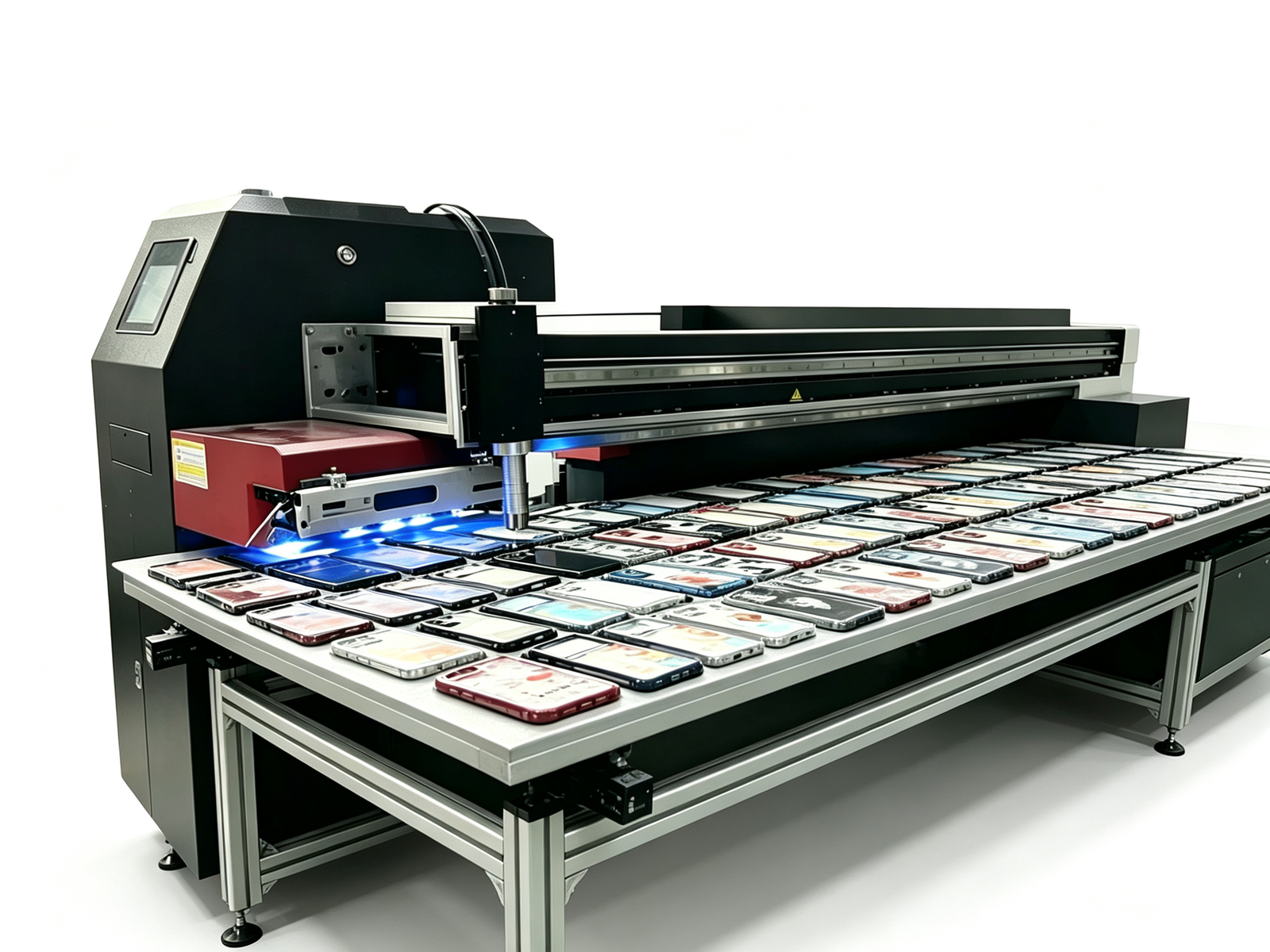

2513 UV Flatbed Printer

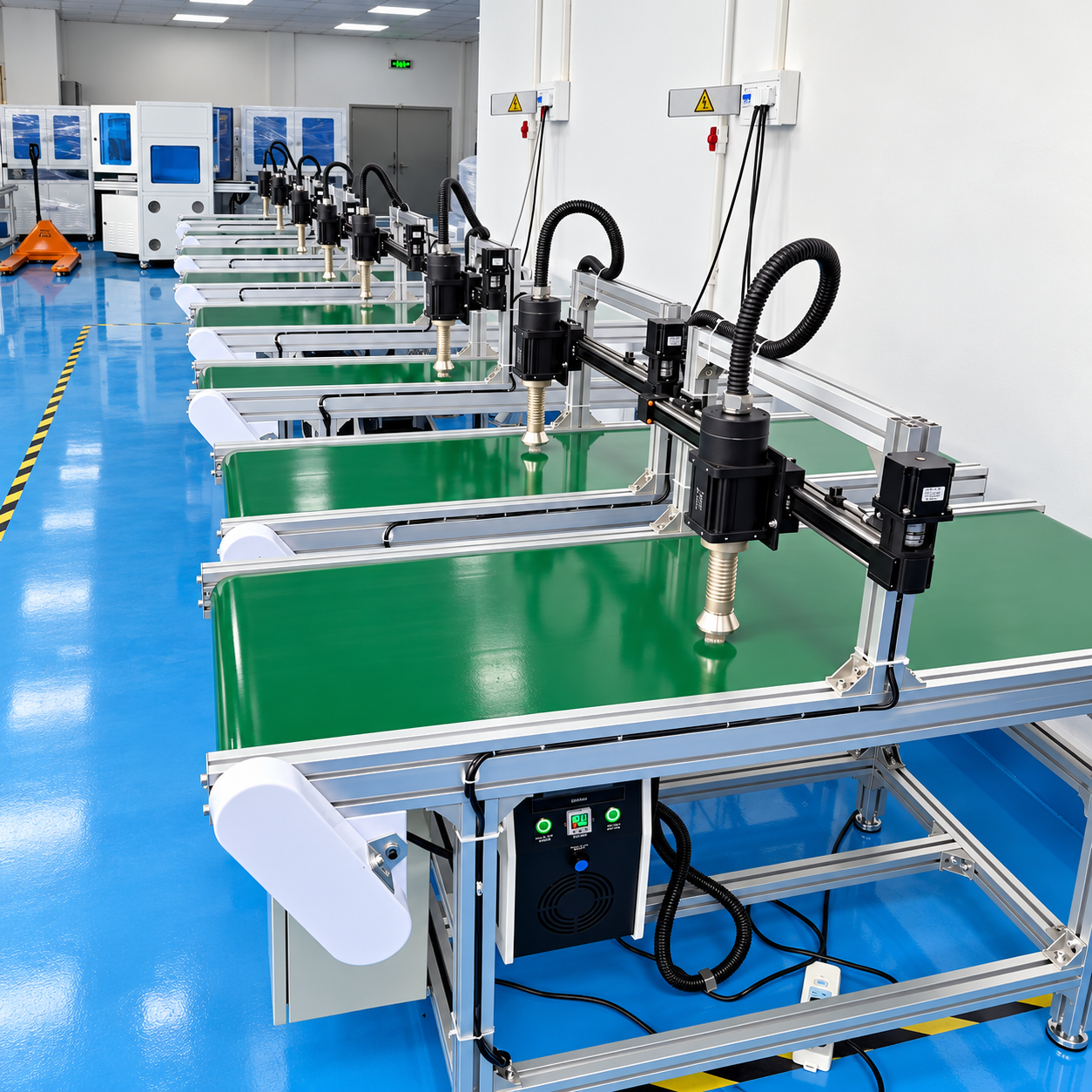

UV printers can be equipped with a plasma surface treatment system, enabling inline surface activation during UV printing to improve ink adhesion across a wide range of substrates, including PP, ABS, PE, PET, glass, acrylic, ceramics, and insulated tumblers.
Discuss your application ↗Need to match this system to your production line? Our team can help you review the application.
| Category | Specification |
|---|---|
| Model | FHD-XP1200 |
| Power range | 800W ~ 1200W (adjustable power) |
| Nozzle size | Standard 50mm (10mm to 70mm optional) |
| With spray gun | Rotary spray gun (spray gun nozzle: standard 3-meter hose) |
| Processing temperature | 40°C ~ 80°C (temperature varies depending on power) |
| Input voltage | AC 220 (±10%) V, 50–60 Hz (grounding required) |
| Pressure range | 0.2mpa ~ 0.35mpa |
| Air source requirements | Gas is clean, free of water and oil. |
| Host dimensions | 205 (Width)* 400 (depth)* 409 (height) mm |
| Product weight | 13 ± 0.5kg |
Tell us what you’re working on.
Share your material, treatment width and line speed. We’ll help you take the next step.
