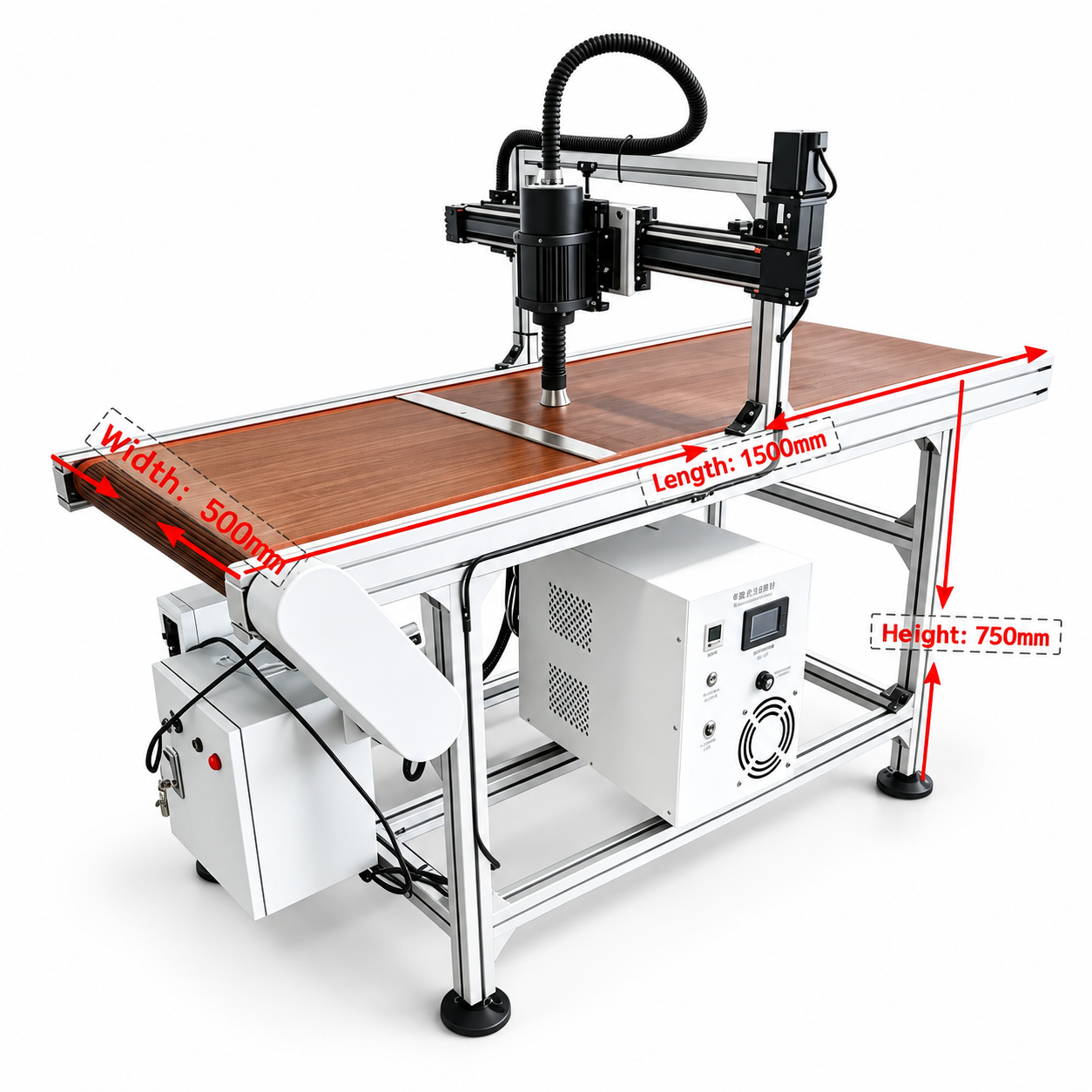

FHD-GP1500
Pipeline-type plasma treatment
Continuous operation of the automatic water flow line, with stable processing of each shot, significantly enhancing the efficiency of mass production; precise and controllable equipment parameters, consistent surface treatment of workpieces, enabling seamless connection with various production lines, compatible with different materials and shapes of workpieces, and flexible to meet diverse production needs.
Discuss your application ↗Need to match this system to your production line? Our team can help you review the application.
| Category | Specification |
|---|---|
| Power range | 1000W ~ 1500W (adjustable power) |
| Nozzle size | Standard 50mm (8mm to 80mm optional) |
| With spray gun | Rotary spray gun (spray gun nozzle: standard 3-meter hose) |
| Processing temperature | 40°C ~ 80°C (temperature varies depending on power) |
| Input voltage | AC 220 (±10%) V, 50–60 Hz (grounding required) |
| Pressure range | 0.2mpa ~ 0.35mpa |
| Host dimensions | 250 (Width) * 450 (depth) * 315 (height) mm |
| Air source requirements | Gas is clean, free of water and oil. |
| Product weight | 15 ± 0.5kg |
